Introduction
Since I posted by idea for two Auckland light Metro lines I’ve had some feedback and made some updates. This is the new version of the article. At the bottom of this article I’m written about the changes and reasoning behind them. You can also read my article on Light Metro Technology to get more information about the technology I am proposing be used.
Below is the new network I am planning as a basis for Auckland. It consists of
- The existing Heavy Rail network (Dark blue).
- A street running light Rail along Queen Street and Domain Rd (Red)
- A North/South from the North Shore to the CBD and then the Airport (Green)
- A Western line from the CBD to Westgate ( yellow )
In this post I’ll cover the North/South line. Not that all pictures/maps in the article can be opened to see the larger version
Light Metro Technology
As outlined in a previous article Light Metro is Automated (driverless), Grade Separated with Short Trains and High Frequencies. It is well suited to Auckland where requirements exceed Light Rail but a full metro would be overkill.
The key advantages of Light Metro over street running light rail is it’s high capacity, frequency and higher speed. Attempting to push Light Rail beyond it’s natural sweet-spot result in a grade-separated system that costs as much as Light Metro but is worse and often costs more to run.
The below table shows the capacity of a Light Metro line (in each direction). For Auckland the stations outside the CBD could be serviced by buses to further increase coverage area. Trains could start at short length and frequency increased as high as possible before longer trains should be used.
| Headway / Trains per Hour | 2 Cars | 3 Cars | 4 Cars | 6 Cars |
| 5 min / 12 tph | 2,400 | 3,600 | 4,800 | 7,200 |
| 3 min / 20 tph | 4,000 | 6,000 | 8,000 | 12,000 |
| 2 min / 30 tph | 6,000 | 9,000 | 12,000 | 18,000 |
| 90 sec / 40 tph | 8,000 | 12,000 | 16,000 | 24,000 |
If the system is run with 4-car trains ( 52m long, 400 people ) then each line has the capacity over double one of the major Auckland motorways such as the Western or Southern.

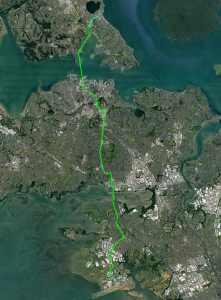

Line 1 – A North/South Metro line from Takapuna to the Airport
This line would start from Takapuna run under the CBD and connect to the Airport in the South.
The line would be grade separated above the road as much as possible since this is cheaper than under-grounding. It would be underground though the central city however.
Total length would be around 28km of which around 4.7km would be underground and 1.5 would be a bridge across the harbour. Cost would be something like $14b
Northern Section
This would be completely overhead and mainly above roadways. It would start from a station at Takapuna and then another station at the Existing Busway station of Akoranga.
The route would then go between the motorway and the sea until it reaches a bridge across the harbour near Northcote Pt.
The Bridge would be longer than the existing Auckland Harbour Bridge and should also carry cyclists and pedestrians. Room for four metro lines would future proof it. The advantage of a bridge over a tunnel is it is cheaper to build and also that it is much easier for pedestrians and cyclists to be accommodated.
A route to Takapuna avoids duplicating the existing busway. Going off the 2024 bus statistics around 20% of the busway passengers go to Takapuna and Milford and it is likely some more would change from the bus to metro at Akoranga station if the Metro better served the southern part of their journey.
I have mapped out some possible extensions to this line but there are several other options.
A natural extension to this line would be a line to the North Shore Hospital and then Milford.
A line to Northcote and Birkenhead could also be built
Later lines might go down Wairau Rd to the Wairau Valley
City Section
Once the Bridge lands at the Silo Park area it will go underground though the Central City
The first station will be under the eastern end of Victoria Park. Ideally it should have entrances on the far sides of Fenshaw, Halsey and Victora Streets so passengers do not have to cross busy roads to reach it.
The Te Waihorotiu CRL station is apparently already future-proofed with space for a North/South line. The station will effectively be the centre of the Auckland System. There should also be a surface Light Rail line nearby on Queen Street.
The University station would be quite deep (because the line would be under Queen Street and the Grafton Valley Motorway) and probably be an elevator-only station.
I’ll cover how lines intersect later
The Southern Isthmus
South of the University the line has a station on the corner of Park Road to serve the Hospital, The Grafton Campus and nearby area. This station may be deep enough to also be elevator-only.
The line comes out of it’s tunnel just after the domain and is now elevated until it reaches the Airport.
The first station is on Carlton Gore road to serve Northern Newmarket. Then there is Station in central Newmarket connected to the existing rail station.
South of Newmarket the line will travel above Manukau Rd and continue South through Royal Oak and Onehunga.
Possible stations could be (at roughly 1km intervals):
- Near corner Manukau and Great South Road
- Corner of Manukau Rd and Ranfurly Road
- Corner of Manukau Rd and Queen Mary Ave (Alexandra Park, Green Lane West Rd)
- Corner of Manukau and Pah Roads
- Royal Oak Mall
- Corner of Manukau Rd and Trafalgar St ( optional / future-proofed )
- Onehunga Mall Road near Grey Street
- Onehunga Station
Mangere Section
The southernmost section crosses the Mangere harbour near the current bridges (No special bridge should be needed since it will be fairly low) and has a station at Mangere Bridge Village just South of the crossing.
The line then continues south along the Coronation Rd, McKenzie Rd and Bader Drive with the provision of a future station near Miller Road.
The station follows Bader Drive over the motorway to a station in Mangere town Centre. It then cuts over some houses (which will need to be purchased) back to the motorway and follows it South.
I’ve future proofed a station in the airport industrial area after which the line goes underground between Landing Drive and Ihumatoa Road for about 1km to a station under the airport.
The Depot for the Line would probably be best placed somewhere between the Airport and Mangere Town Center Station.
CBD stations and line intersections
This maps shows the other lines including the existing lines, a Queen St Light Rail and my proposed Western line.
The Victoria Park station as well as serving the immediate area supports transfers to the Western Line to get to lower-Queen Street and transfer to College Hill and Northcote buses
The Te Waihorotiu Station allows access to Aotea Square area and transfers to the CRL and Light Rail
The University Station serves the Universities and allows transfers to the Western line and Symonds Street Buses.
Southern Branches and Other Lines
As the lines gets further South the demand on the single line will be reduced. So I propose that the line eventually branch just South of Newmarket
The new line would go down Great South Road as far as the existing Penrose Station and then East along Penrose Rd to meet the Sylvia Park station. It would then go East to Pakuranga and down Ti Rakau Dr to Botany. The existing Greenlane and Remuera stations could perhaps be replaced by Stations on the line
Because Light Metro can handle very high frequency, capacity on both branches would be high. For example trains could be every 2 minutes in the central areas and every 4 minutes on the branches
I’ve sketched out some later lines mainly to make sure the planned line has room for growth.
The first is a line from Mangere Town Center to Botany that goes though Papatoetoe and Otara.
The other is a cross town line that Starts in Point Chevalier and Follows Carrington, Mt Albert, Mt Smart and Great South Roads to Manakau City.
Penrose station would be a natural intersection point for two of the lines (and the existing heavy rail) and could be upgraded to be a major transfer station.
Keeping the cost down
It is important to keep the cost of the line down as much as possible to improve it’s chances of being built. Especially the urge must be avoid to create expensive monumental stations or under-grounding more sections to avoid perceived disruption.
I propose the following measures
- Elevated Line instead of Underground where possible.
- Bridges rather than tunnels across the Harbours
- A standard simple design for elevated stations. Cheap colour and art can provide differentiation for a small percentage of the cost
- Simple underground stations
- Leaving space for some stations to be built later
- Relatively small elevated stations. Perhaps only with 60m (4 car) platforms being initially built but space left for larger additions later.
- Driverless operation
- Using Standard off-the-shelf Train systems that are already deployed elsewhere with minimal changes
Note that driverless operation allows frequent trains which in turn allow shorter trains which means smaller cheaper stations.
Costing
I put my costs are what I consider realistic New Zealand levels. Some countries are able to build for less but I’ve listed what I hope New Zealand can build for.
- $1b/km underground lines
- $300m/km for elevated
- Stations: $25m elevated, $250m underground
- Harbour bridge $1b
North/South Line length by type of track
- Takapuna section 1.7km above ground to Akoranga
- 5 km Overhead from Takapuna to the Bridge
- A 1.5 km Bridge across the Harbour
- A 3.7 km tunnel under the CBD
- 8.6 km to the northern shore of Mangere Inlet
- 7.7 km overhead across the inlet and South
- 1 km underground near the airport
- Total
- 4.7 km underground
- 1.5 km Bridge
- 21.3 km overhead
Total cost
- 4.7 km underground at $1b/ km = $4.7b
- 1.5 km Harbour Bridge = $1b
- 21.3 km of overhead line at $300m/km = $6.4b
- 13 overhead stations at $25m each = $325m
- 5 underground stations at $250m each = $1250
- Total = 13.8b
General observations and conclusions
Travel times for this sort of Metro are around 30km/h including stops although this line has fewer stops than most and some long stretches so should be a bit faster. Assuming 30km/h we get:
- Airport to Te Waihorotiu station 19.4km = 38 minutes
- Takapuna to Te Waihorotiu station 8.1km = 16 minutes
Currently the Airport takes around 1h 30m via public transport and 40 minutes for the Skydrive private Airport bus outside of peak times. The bus from Takapuna takes 20-25 minutes. Remember that the metro will have very high fequency so waiting for the next train will only be a couple of minutes.
I’ve tried to make the route realistic and useful. As far as I can tell all the climbs are within the capacity of a typical metro system. However some of the corners may be a little tight and additional space may be needed.
While only a small proportion of the passengers will travel to and from the airport I think the service will be great for this. Some people do express concern about room for luggage but riders manage on other systems around the world.
I think that this line and the Western line has a great potential to improve transport across Auckland. It will take pressure off the Northern Busway and also add huge capacity to the South West and Airport.
My next article will cover my proposal for a Western Line
Changes since previous version
General
I’ve made 3 stations on the line optional to save cost and increase speed
North Shore
Instead of replacing the Northern busway I’ve updated the line to go to Takapuna and eventually Milford instead. This will be around 1.7km from Akoranga Station rather than 10km so it should say $2-3 billion from the initial build and mean that we augment the Northern Busway rather than replace it..
I’ve included a few possible routes but there are a lot of options both for the initial route into Takapuna and future lines.
Central City
I’ve replace the Wynyard and Victoria stations with a single station under the east of Victoria Park. It would also have a similar service area to the two stations.
I’ve also rerouted the end of the Western Line to go along Fenshaw St rather than across the Viaduct Basin
Auckland Hospital
My original plan had the line going South from the University, under the motorway and Museum and emerging on the North of Newmarket
However skipping the hospital seems a bad idea. It is a huge trip generator not just for the hospital but for the Grafton Campus and other businesses and housing nearby.
So I’ve updated the route to have a station under the corner of Park road and the line emerging on Carlton Gore road with a station near the bottom of that road.
Mangere
I’ve changed Mangere town centre to be directly on the line instead of a short branch. This does mean the line goes through housing to get back on the motorway.
Also got rid of one station in Mangere Bridge.
Credits for suggestions on changes
- Victoria Park – Scoot
- Hospital – pictureofcat on Reddit
- Albany – Stu Donovan
- Southeast line – Scoot
